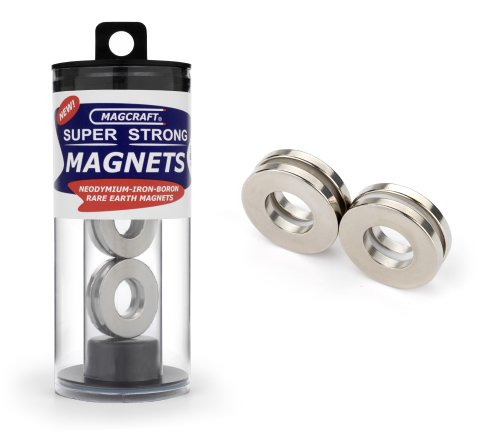

Magcraft NSN0616 1-Inch by 1/2-Inch by 1/8-Inch Rare Earth Ring Magnets, 4-Count

Magcraft NSN0616 1-Inch by 1/2-Inch by 1/8-Inch Rare Earth Ring Magnets, 4-Count

Other Views:
Brand: Magcraft
Category: Home Improvement

Buy New: $11.99
as of 2/10/2012 02:23 CST details
Qty In Stock


Sales Rank: 13,206

Media: Tools & Home Improvement
Number Of Items: 1
Shipping Weight (lbs): 0.2
Dimensions (in): 5.5 x 1.7 x 1

MPN: NSN0616
Model: NSN0616
UPC: 875661000160
EAN: 0875661000160

Shipping: Eligible for FREE Super Saver Shipping
Availability: Usually ships in 24 hours
Features:
  • Neodymium iron boron (NdFeB) rare earth magnets
  • Grade - N40
  • Dimensional tolerance - +/-0.005 Inch
  • Plating - nickel-copper-nickel
  • Maximum working temperature - 176-Degree Fahrenheit (80-Degree Celsius)
Editorial Reviews:

Product Description
Rare earth magnets are the strongest type of permanent magnet currently made. They are amazingly powerful for their size and have innumerable uses. These ring magnets are 1.000 inch (25.4mm) diameter, 0.500 inch (12.7mm) inside diameter and 0.125 inch (3.2mm) thick. They are magnetized through the thickness. They are composed of grade 40 neodymium iron boron magnetic material and are plated in nickel-copper-nickel for a shiny corrosion resistant finish. Their individual pull force is approximately 5.4 lbs. Maximum working temperature is 176 F (80 C). Magnets may chip and crack if allowed to snap together.
